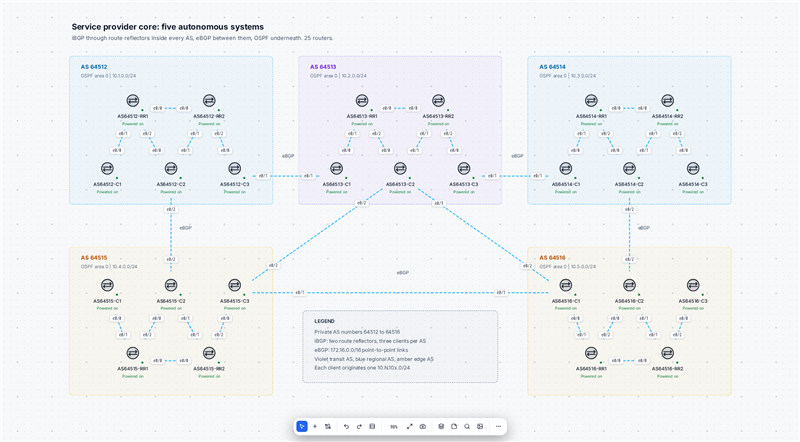

Service Provider Core: Multi-AS BGP
Five autonomous systems with iBGP through route reflectors inside each AS, eBGP between them and OSPF underneath.
- Devices
- 25
- Smallest edition
- Lite
Built on the canvas. Not in a drawing app.
Every topology here was built on the canvas and captured from a running appliance.
Topologies
14 topologies

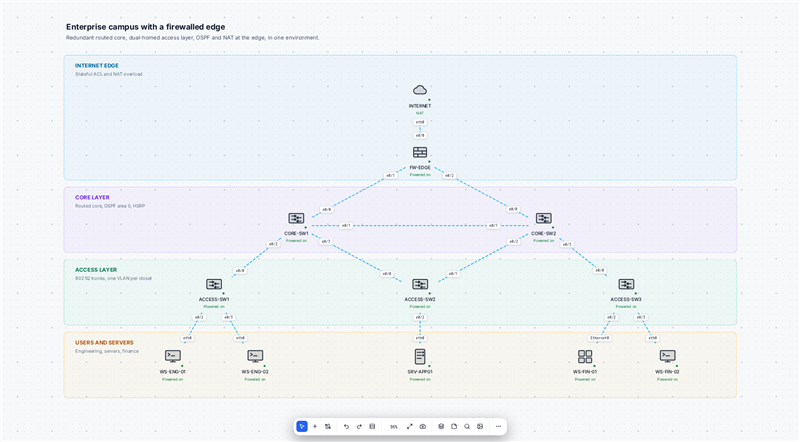

Enterprise Campus and Edge
A redundant routed core, a dual-homed access layer, OSPF and NAT at a firewalled edge.
- Devices
- 12
- Smallest edition
- Lite

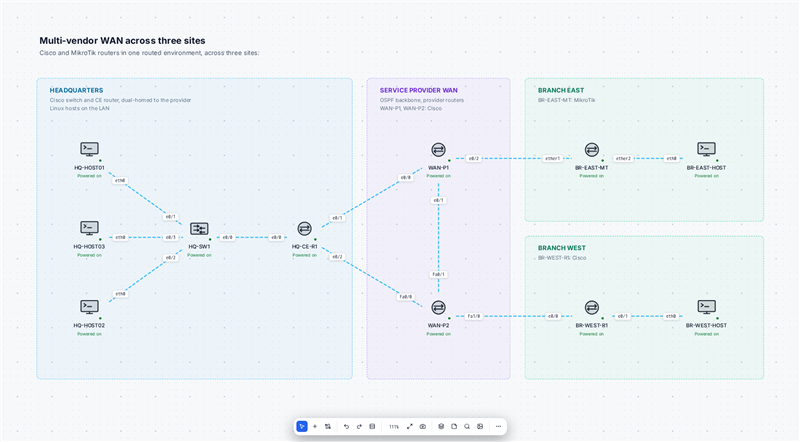

Multi-Vendor WAN
Three sites and a two-vendor provider backbone in one routed environment, with OSPF across vendors.
- Devices
- 11
- Smallest edition
- Lite

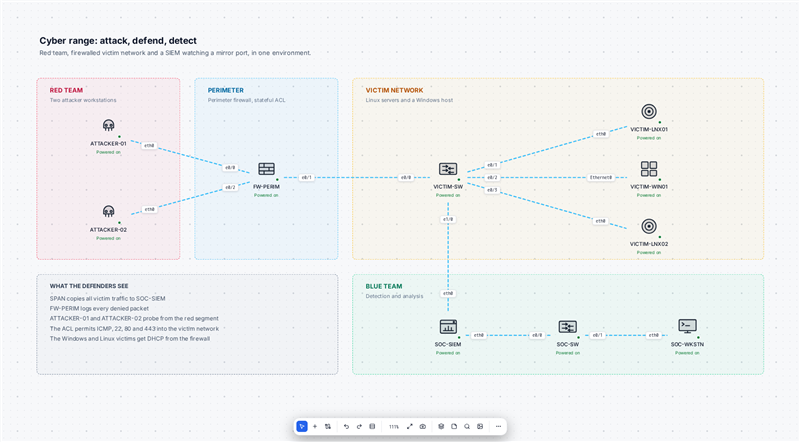

SOC Cyber Range
A red team, a firewalled victim network and a SIEM watching a mirrored port, sealed in one environment.
- Devices
- 10
- Smallest edition
- Community

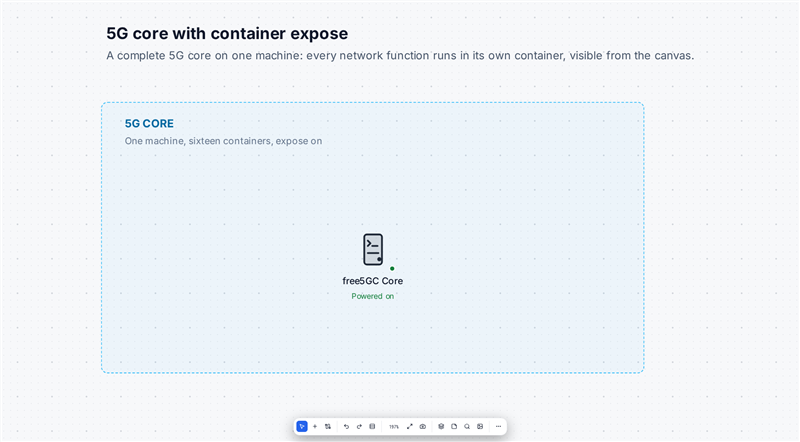

5G Core
A complete 5G core on one machine: every network function runs in its own container, visible and reachable from the canvas.
- Devices
- 1
- Smallest edition
- Lite

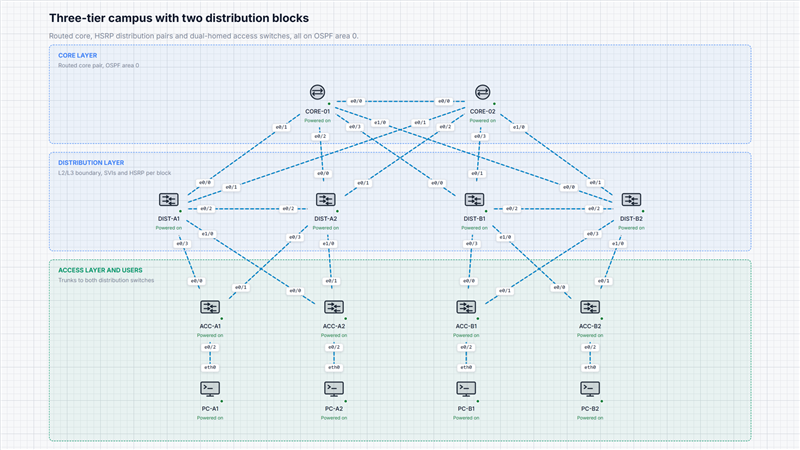

Three-tier campus, 2 distribution blocks, 4 access switches
Routed core, HSRP first-hop redundancy and dual-homed access in building blocks
- Devices
- 14
- Smallest edition
- Lite

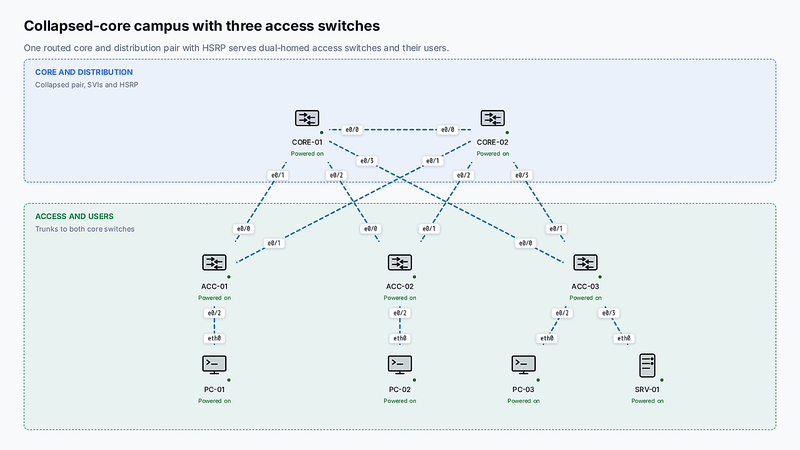

Collapsed-core campus, 3 access switches
Inter-VLAN routing and HSRP on a collapsed core pair with dual-homed access switches
- Devices
- 9
- Smallest edition
- Community

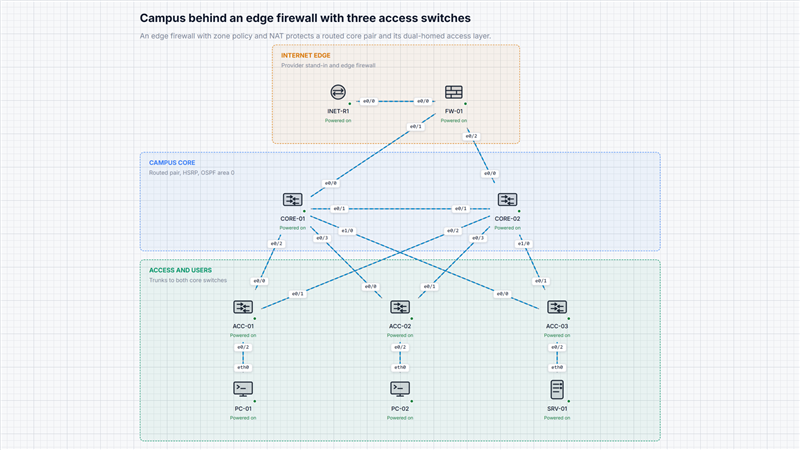

Campus with firewalled internet edge, 3 access switches
Zone-based policy and NAT overload at the internet edge of a campus with HSRP and OSPF inside
- Devices
- 10
- Smallest edition
- Community

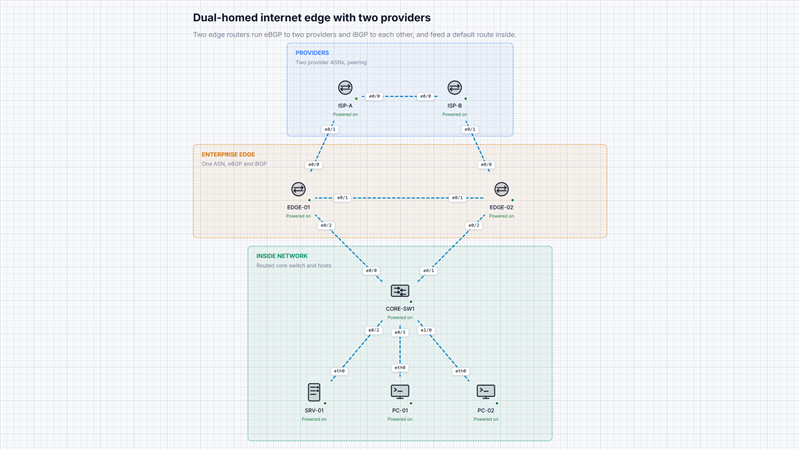

Dual-homed internet edge with BGP, two providers, core switch
Provider redundancy with eBGP to two autonomous systems, iBGP between edge routers and local preference
- Devices
- 8
- Smallest edition
- Community

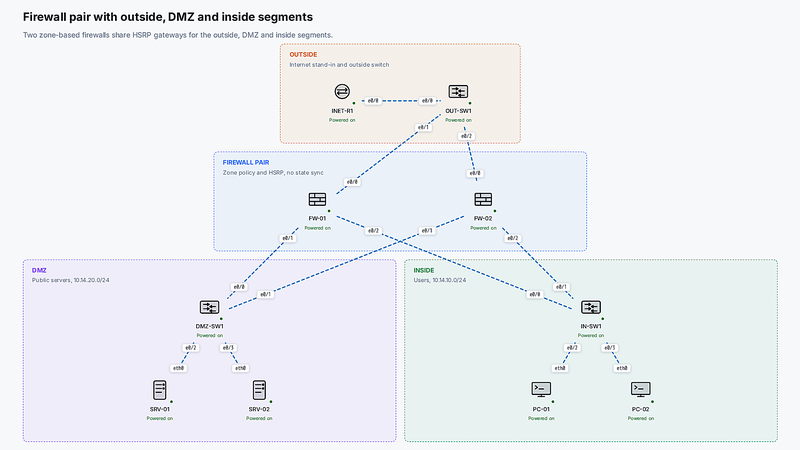

Firewall pair with DMZ, 2 DMZ servers, 2 inside clients
Zone-based policy across three zones on a firewall pair with HSRP gateways and interface tracking
- Devices
- 10
- Smallest edition
- Community

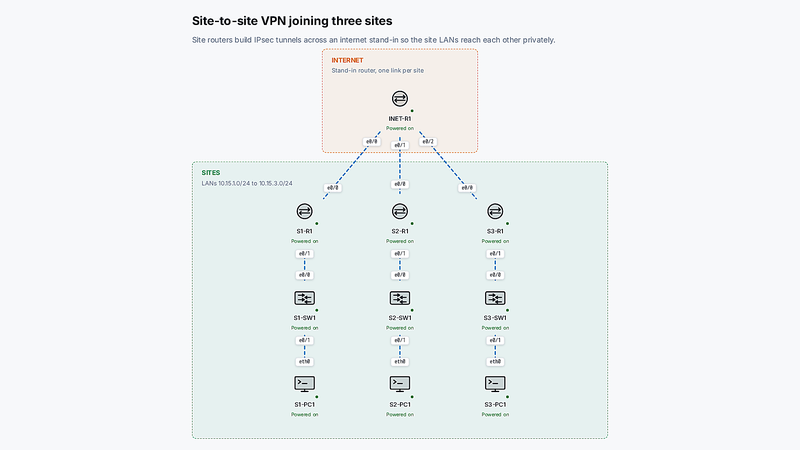

Site-to-site IPsec VPN, 3 sites
IPsec tunnel interfaces with pre-shared keys between sites, and static routes to the remote LANs
- Devices
- 10
- Smallest edition
- Community

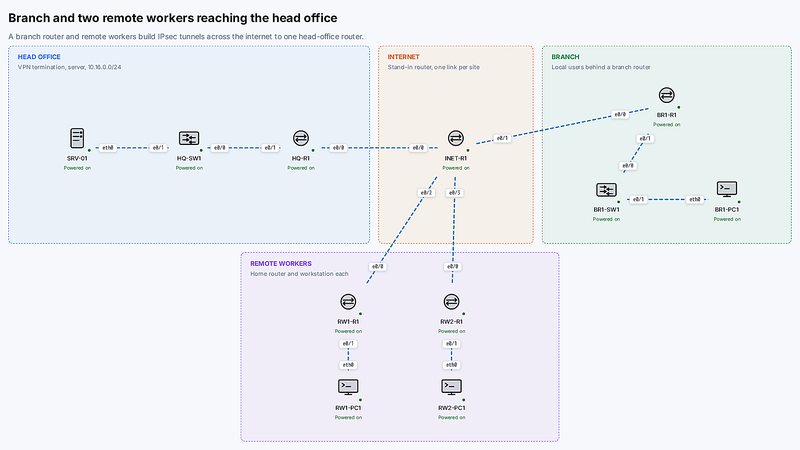

Head office with 1 branch and 2 remote workers
IPsec tunnel interfaces from a branch and from remote workers to one head-office edge router
- Devices
- 11
- Smallest edition
- Lite

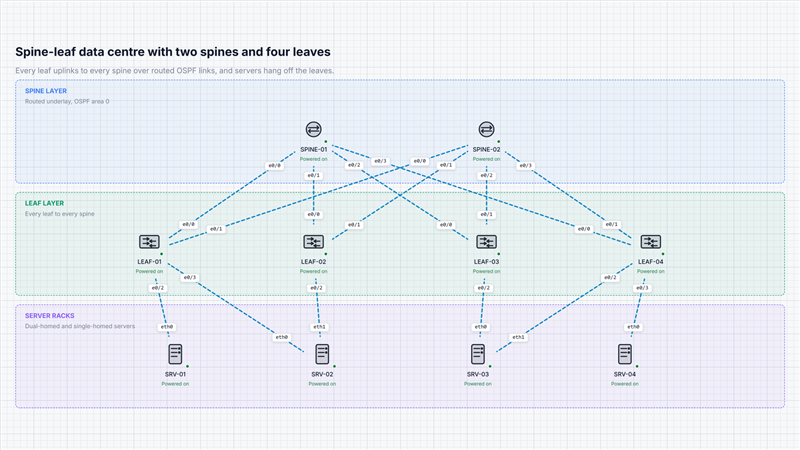

Spine-leaf data centre, 2 spines, 4 leaves
Full-mesh leaf-to-spine routed links, equal-cost multipath and servers dual-homed to a leaf pair
- Devices
- 10
- Smallest edition
- Community

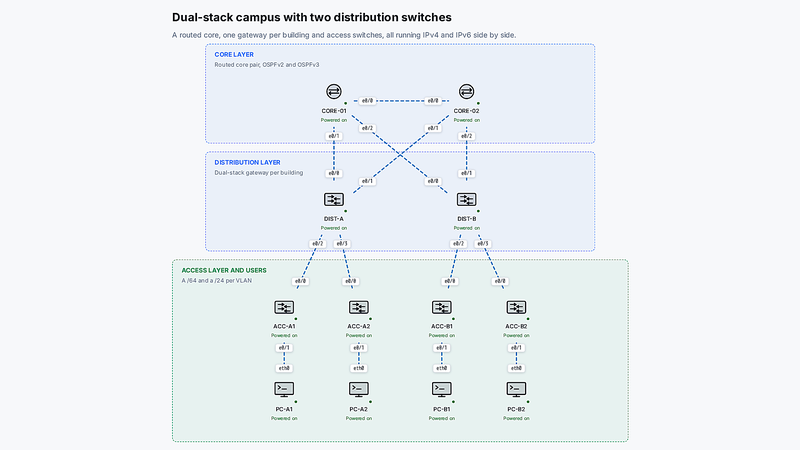

Dual-stack campus, IPv4 and IPv6, 2 distribution switches, 4 access switches
Side-by-side IPv4 and IPv6 routing, ULA addressing, router advertisements and a /64 per VLAN
- Devices
- 12
- Smallest edition
- Lite
No topology in the gallery matches these filters yet.
